How it unfolds, step by step
The setup
One session of Instrument Q is drawn here as the thirteen readings it really produced. A candle is the usual way to sum up a session. It records four prices only: the first, the highest, the lowest and the last. Here those are an open of ₹100, a high of ₹106, a low of ₹99 and a close of ₹104. So the range from high to low is ₹7. The body between the open and the close is ₹4. Those four numbers are the whole of the candle.
What happens next
Squeeze the thirteen readings into that one candle and the path is gone. The candle keeps four prices. It throws away the order they arrived in. A session that fell to ₹99 first would draw the same candle. So would one that ran to ₹106 first. Group the same trades into five-minute or daily bars and the picture changes again. That is why a chart label with no timeframe is incomplete, not just untidy.
What it means — and does not

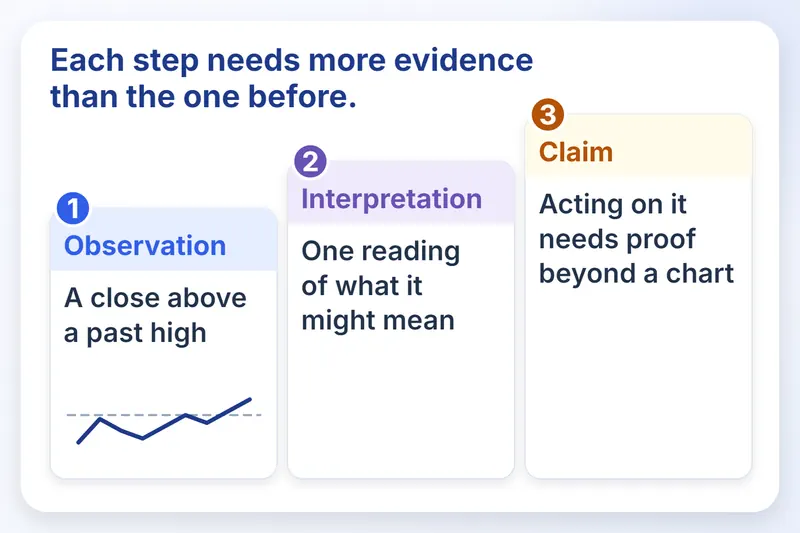

Three levels of statement sit on top of this one candle. They are not the same thing. The observation is that the close was ₹104, above the open. That needs only correct data with correct time stamps. The interpretation is that buyers finished the session on top. That needs a stated definition, and the other readings it is being chosen over. The claim that the shape is worth acting on needs more again. It needs evidence gathered outside the window where the shape was spotted, with real costs in it. The chart gives none of that. Sliding between the three is how a description turns into a promise, without anybody deciding to make one.
- Price (₹)
- High ₹106 · 106
- Close ₹104 · 104
- Open ₹100 · 100
- Low ₹99 · 99
One session whose candle is open ₹100, high ₹106, low ₹99, close ₹104 — a ₹7 range and a ₹4 body. The line is the path inside that single candle, which the candle itself discards.
Show the underlying data
| Five-minute reading within one session | Price (₹) |
|---|---|
| 1 | 100 |
| 2 | 101.5 |
| 3 | 99.8 |
| 4 | 99 |
| 5 | 100.4 |
| 6 | 102.6 |
| 7 | 104.1 |
| 8 | 106 |
| 9 | 104.8 |
| 10 | 103.2 |
| 11 | 102.5 |
| 12 | 103.6 |
| 13 | 104 |
What this does not establish
A chart reading needs evidence beyond one price path. One session's story stops standing as soon as the same shape is counted across a defined list of instruments and a defined window. If that count gives the result the list gave anyway, the story is gone. That is the , and /learn/base-rate-first works it through. People who act on a shape conventionally anchor a stop-loss to the level whose breach means the shape has stopped describing the market. That level says where they would be wrong. It is not, and never was, evidence that the shape was right. The honest question a chart can answer is what would contradict this reading. It is not which pattern wins.
Things to check
5What is the timeframe, and does the label say so? Two charts of the same trades cannot be compared without it.
Is this an observation, an interpretation, or a claim about what happens next?
Was the rule written down before anybody looked at the sample, or after the interesting part was already visible?
Are the failed examples still in the sample, or only the ones that worked?
Separate the observed prices, the interpretation and the claim about what happens next.
Common mistakes
4Reading a candle as a motive, such as “sellers stepped in”. The candle holds four prices. It holds no names, and no order of arrival.
Comparing shapes across charts without checking that both use the same timeframe. Then the grouping is doing the work, not the shape.
Counting several indicators built from the same closing prices as several separate pieces of evidence. They are three views of one price series, not three witnesses.
Dropping the times the shape failed. That turns a description into a success rate nobody else can reproduce.
A candle shows an open of ₹100, a high of ₹106, a low of ₹99 and a close of ₹104. What does it establish?
- That buyers were in control of the session and ended it holding the advantage
- Four prices and the interval they belong to
- That the interval which follows is more likely to open higher than it closes, given the body
Show the answer
B. Four prices and the interval they belong to
A candle is four numbers over a stated interval, and that is the whole of it. Who was in control is an interpretation laid on top. Several very different paths through the session draw this same candle, and the candle throws away every one of them. Anything about the next interval is a third kind of claim again. It needs evidence the chart does not hold.
Frequently asked
3Is a chart pattern meaningless, then?
No. It is a useful description, and a fair place to start an idea you then test. What it is not is proof of an edge. The name on a pattern is recognition, not evidence. /learn/sample-size-what-twelve-occurrences-prove and /learn/the-shuffle-test are the two pages that turn a description into something a person can actually check.
Does a higher timeframe remove false signals?
No. It groups the same trades differently, and that swaps one set of problems for another. There are fewer occurrences. They arrive later. Each one covers a wider range. It changes what is being measured. It does not remove the uncertainty in it.
Can several indicators agree and still be wrong?
Yes. They agree most easily when they share inputs. Two measures built from the same price series are almost bound to agree, and that adds very little information. So more labels on a chart can feel like more confirmation while being none.
